DVI

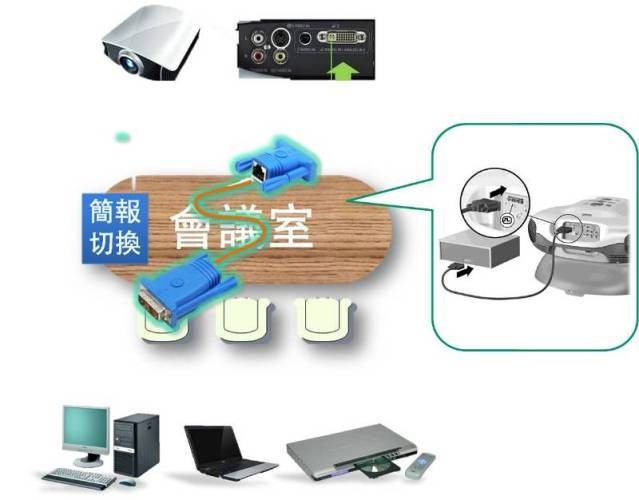

Continuance of typical DVI connector, DVI AOC also keeps the screw design for cable fixing. Different with typical DVI cable, DVI hybrid AOC is able to support 100 meters with lower power consumption and less EMI emission. Saving the extra converter if use DVI hybrid AOC for display connection in conference room. Compact design to improve the cable layout, DVI hybrid AOC already totally subverted the image of typical DVI cable.

Feature:

1. 4 fibers + 8 coppers wire.
2. Supports DVI-D (Single Link) resolutions up to 1080p.
3. Supports PC resolutions up to 1600x1200 and 1920x1200.
4. Supports digital bit-rates up to 4 x 10G Bit/sec per channel (R,G,B, Clock)
5. Supports color deep 24,30,36,48
6. Optical fiber transmission is immune to environmental signal noise
7. Low RFI / EMI profile for sensitive application
8. HDCP compliant
9. Can be powered by HDMI/DVI source, or using optional +5VDC external power supply
10. Rugged yet pliable construction
11. Transmission length from 1m to 100m

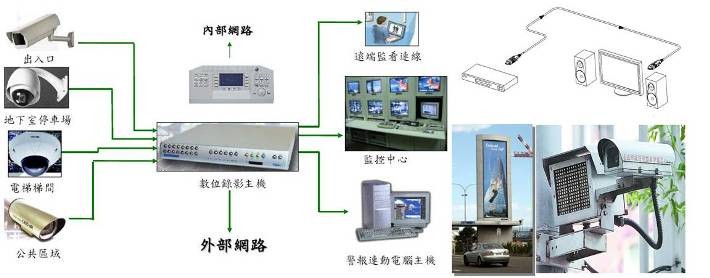

Application:

1. Airplane On-board Video System
2. Car Service Center big screen show Video System
3. TV Broadcast Station.
4. Bar diagram, Conference Room, Dentist, Office Lobby, Digital Home Theatre
5. Plasma, TFT-LCD, and all types of Projectors
6. LED signboards and panel information displays for Airports, Stadiums and Outdoor Advertising, Auditorium, and Kiosk
7. Traffic control monitor
8. Factory Automation Systems monitor
