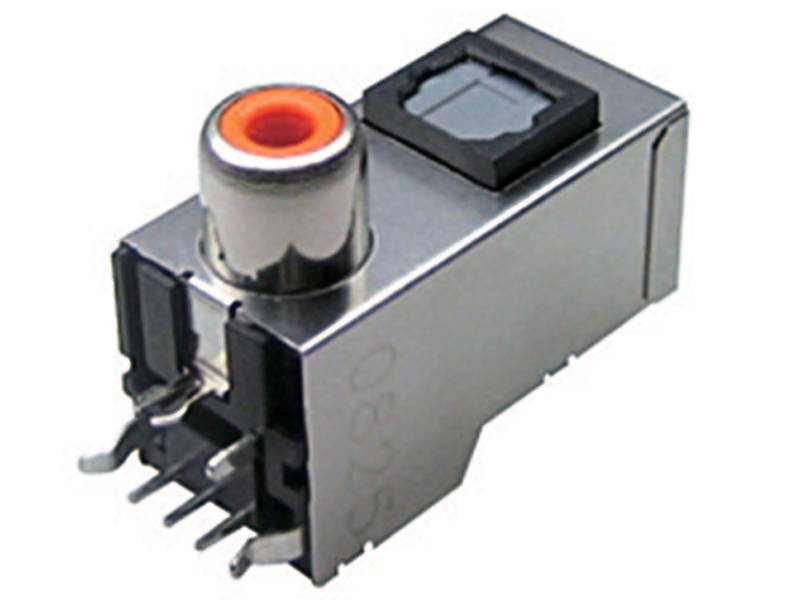

JST1586/JSR1586
- RCA+POF all in one
- EMI protection enhance
- RCA & POF can work simultaneously
- Offer TX/RX (Transmitter / Receiver)
- TX: Gray / RX: Black
- Metal fix pin for high heat-resistance
- 16/25/50 Mbps optical transmitting option
- Application: Mother board

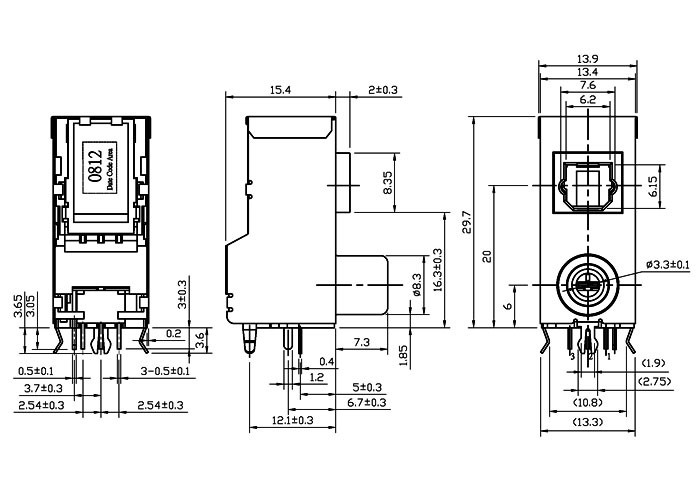

DIMENSIONS: in mm

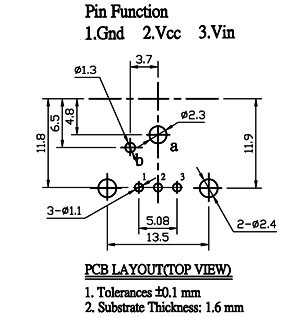

PCB LAYOUT
