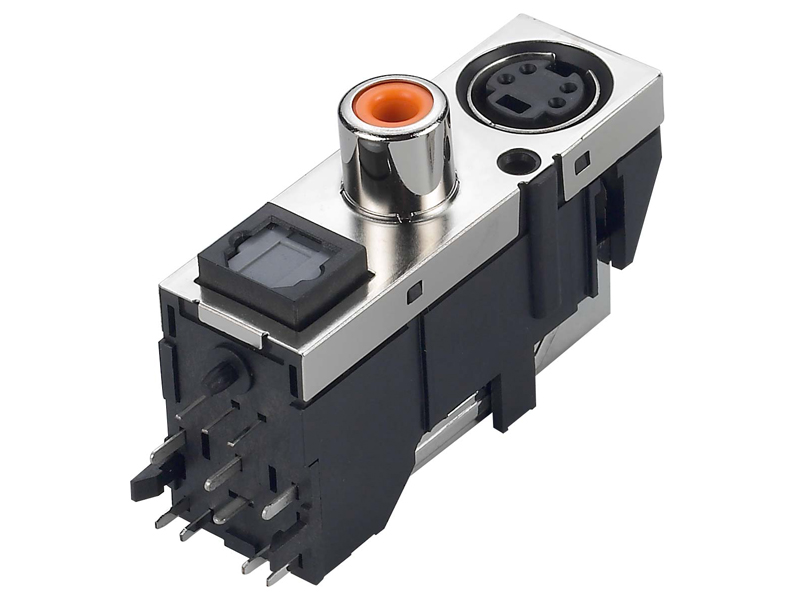

JDT1668/JDR1668

S-video+POF+RCA type
Screw use holder
EMI protection enhance
S-video equiped
Offer TX/RX (Transmitter / Receiver)
TX: Gray / RX: Black
16/25/50 Mbps optical transmitting option
Application: Set-top-box

Notes:

1. All dimensions are in millimeters
2. General Tolerance: ±0.2mm
3. RCA Ring (Bush) Color??range
4. Shutter Color: Gray
5. Meet ROHS/SONY SS-00259/JPGSSI

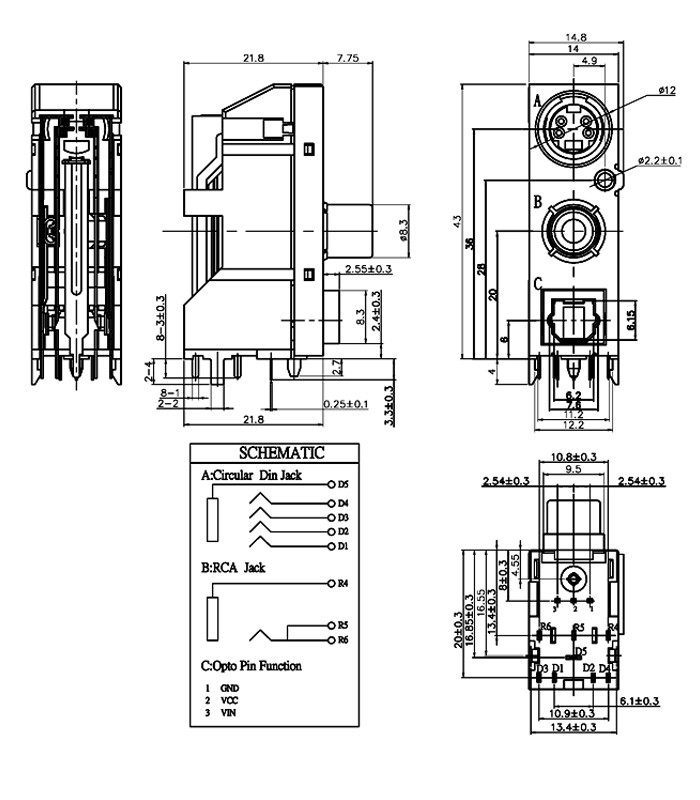

DIMENSIONS: in mm

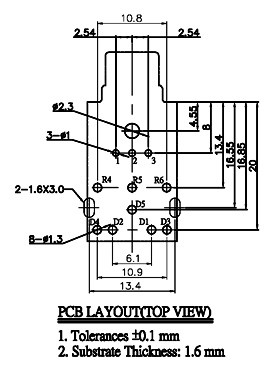

PCB LAYOUT
